Performance Upgrade Turbochargers Catalog: GTX, G-Series and Bolt-On Turbo Solutions

Performance upgrade turbochargers are one of the most important product categories in the modern tuning and motorsport aftermarket. For workshops, turbo rebuilders, importers, wholesalers and performance parts distributors, the right turbocharger range can serve different customer needs: street performance, track builds, high-power engine projects and direct-fit upgrade solutions.

Trimpexparts offers a broad catalog of performance upgrade turbochargers, including universal GTX series turbochargers, G-Series and G(GT) universal turbos, and bolt-on turbo upgrades for EA888, GM LTG and related applications. The product range covers different compressor wheel sizes, turbine wheel sizes, turbine housing options, wastegate configurations, flange types, HP ranges and engine displacement targets.

This makes the catalog suitable for B2B buyers who need both universal performance turbochargers and application-specific bolt-on upgrade turbos.

What This Performance Turbo Catalog Includes

The catalog is divided into three main product groups:

  1. Universal GTX Series Turbochargers
    These models cover GT20, GT22, GT25, GT28, GT30 and GT35 frame turbochargers, with listed power ranges from smaller 140–230 HP applications up to 550–1000 HP high-performance builds.
  2. G-Series / G(GT) Universal Turbochargers
    This range includes popular upgrade models such as G25-550, G25-660, G30-660, G30-770, G30-900, G35-900 and G35-1050. Some models are available in standard and reverse rotation, with V-band, T25, T3 or T4 turbine inlet configurations.
  3. Bolt-On Upgrade Turbochargers
    This section focuses on direct-fit and application-specific performance upgrades, especially for EA888 Gen II / Gen III engines, Audi / VW transverse and longitudinal platforms, and GM LTG engine applications.

Universal GTX Turbochargers for Custom Performance Builds

The universal GTX turbocharger range is suitable for custom turbo kits, motorsport projects and performance workshops that build applications around specific compressor and turbine requirements.

The catalog starts with compact models such as GTX2052-38, GTX2056-42 and GTX2256-42, which are suitable for smaller displacement engines. It then expands into GT25 and GT28 models such as GTX2560R, GTX2860R, GTX2867R, GTX2871R and GTX2876R, which are common choices for 1.8L to 3.0L performance builds.

For higher-power applications, the catalog includes GT30 and GT35 models such as GT3071R, GTX3076R, GTX3582R and GTX3584R, covering listed ranges up to 1000 HP depending on the turbo configuration and engine setup.

G-Series and G(GT) Turbochargers

The G-Series section includes turbochargers using modern G-style compressor and turbine wheel sizing, with multiple housing and flange configurations. Models such as G25-550 and G25-660 are popular for responsive street and track applications, while G30-770, G30-900, G35-900 and G35-1050 are more suitable for high-flow, high-power engine builds.

The catalog also includes G(GT) models, which use G-style wheels on GT-style turbo configurations. These are useful for buyers who want to combine modern wheel sizing with more traditional GT-style fitment options such as T25, T3 or T4 turbine inlet configurations.

  • Standard and reverse rotation options
  • Wastegated and non-wastegated options
  • V-band turbine inlet and outlet configurations
  • T25, T3 and T4 flange options
  • Listed power ranges from 300 HP to over 1000 HP
  • Displacement targets from 1.4L to 5.5L

Bolt-On Turbo Upgrades for EA888 and GM LTG Engines

The bolt-on turbocharger range is designed for customers who need a more application-specific performance upgrade. These products are especially useful for tuning workshops, importers and wholesalers serving Volkswagen, Audi and GM performance markets.

For EA888 Gen II and Gen III engines, the catalog includes models such as K04-064H-370, K04-064Z-370, EA28R series and EA38R series turbochargers. These products cover transverse and longitudinal engine layouts, with power levels ranging from 370 HP to 750 HP depending on the model.

For GM LTG engine applications, the catalog includes ATS-500R and ATS-650R models, with G25-660 and G30-770 style upgrade options.

  • Ball bearing or dual ceramic ball bearing construction
  • Journal bearing options for selected K04 upgrades
  • Direct-fit original oil and water feed compatibility
  • Listed 15% increased response rate on selected models
  • Application coverage for Audi, Volkswagen, Chevrolet and related 2.0T platforms

How B2B Buyers Can Choose the Right Upgrade Turbo

Choosing the right performance turbocharger depends on more than the HP number. Importers and workshops should check the full technical specification before placing a wholesale order.

  • Target engine displacement
  • Desired power range
  • Compressor wheel size
  • Turbine wheel size
  • Turbine inlet flange
  • Turbine outlet flange
  • AR ratio
  • Wastegate requirement
  • Standard or reverse rotation
  • Universal or bolt-on installation type
  • Oil and water feed compatibility
  • Vehicle platform and engine generation

For universal turbochargers, the buyer must confirm the custom kit design, manifold flange, downpipe setup, oil line configuration and tuning requirements. For bolt-on turbochargers, the buyer should confirm the exact engine generation, vehicle layout, OEM turbo type and installation requirements.

Why This Catalog Is Useful for Wholesalers and Workshops

A complete performance turbocharger catalog helps B2B buyers serve different customer groups. Universal GTX and G-Series turbos are ideal for custom builds and tuning projects, while bolt-on EA888 and GM LTG turbochargers are easier to position for workshops and vehicle-specific upgrade markets.

For wholesalers, the most practical strategy is to stock fast-moving bolt-on options while offering larger universal turbochargers as order-based performance solutions. This allows distributors to cover both daily-demand tuning products and specialized high-power builds.

Product List: Universal GTX Series Turbochargers

Series Models Covered Compressor Wheel Range Turbine Wheel Range Listed HP Range Displacement Range
GT20 GTX2052-38, GTX2056-42 38×52 to 41.5×56 mm 40×47 mm 140–260 HP 1.4L–2.0L
GT22 GTX2256-42 41.5×56 mm 42.7×50 mm 150–280 HP 1.7L–2.5L
GT25 GTX2554R, GTX2560R, GTX2563R 42×54 to 47×63 mm 42×53 to 43×53 mm 170–350 HP 1.4L–2.5L
GT28 GTX2860R, GTX2863R, GTX2867R, GTX2871R, GTX2876R 47×60 to 58×76 mm 47×54 mm 250–580 HP 1.8L–3.0L
GT30 GT3071R, GTX3076R 53×71 to 58×76 mm 55×60 mm 320–750 HP 1.8L–3.0L
GT35 GTX3582R, GTX3584R 66×82 to 67×84 mm 62×68 mm 400–1000 HP 2.0L–5.5L

Product List: G-Series and G(GT) Universal Turbochargers

Model Rotation / Type Compressor Wheel Turbine Wheel Flange Options Listed HP Range Displacement Range
G25-550 Standard / Reverse 48×60 mm 54×49 mm V-Band / 76 V-Band 300–550 HP 1.4L–3.0L
G25-660 Standard / Reverse 54×67 mm 54×49 mm V-Band / 76 V-Band 350–660 HP 1.4L–3.0L
G30-660 Standard / Reverse 54×67 mm 60×55 mm V-Band / 76 V-Band 350–660 HP 1.4L–3.0L
G30-770 Standard / Reverse 58×71 mm 60×55 mm V-Band / 76 V-Band 475–770 HP 2.0L–3.5L
G30-900 Standard / Reverse 62×76 mm 60×55 mm V-Band / 76 V-Band 550–900 HP 2.0L–3.5L
G35-900 Standard / Reverse 62×76 mm 68×62 mm V-Band / 76 V-Band 550–900 HP 2.0L–5.5L
G35-1050 Standard / Reverse 68×84 mm 68×62 mm V-Band / 76 V-Band 700–1050 HP 2.0L–5.5L
G25-550 GT Standard 48×60 mm 54×49 mm T25 / 76 V-Band 300–550 HP 1.4L–3.0L
G25-660 GT Standard 54×67 mm 54×49 mm T25 / 76 V-Band 350–660 HP 1.4L–3.0L
G30-770 GT Standard 58×71 mm 60×55 mm T3 / T4 / 76 V-Band 400–700 HP 2.0L–3.5L
GTX3076R-58 Standard 58×71 mm 60×55 mm T4 / 76 V-Band 450–800 HP 2.0L–3.5L
G30-900 GT Standard 62×76 mm 60×55 mm T3 / T4 / 76 V-Band 450–800 HP 2.0L–3.5L
G35-900 GT Standard 62×76 mm 68×62 mm T3 / T4 / 76 V-Band 500–850 HP 2.0L–5.0L
G35-1050 GT Standard 68×84 mm 68×62 mm T3 / T4 / 76 V-Band 600–1000 HP 2.0L–5.5L
GTX3582R-66 Standard 66×82 mm 68×62 mm T4 / 76 V-Band 600–1000 HP 2.0L–5.5L

Product List: Bolt-On Upgrade Turbochargers

Part Number Model Engine / Application Compressor Wheel Turbine Wheel Key Notes
PT001 K04-064H-370 EA888 Gen II transverse, EA113 2.0T K04 46×56 mm, 8+0 blades 44.5×50 mm, 9 blades Journal bearing, peak 370 HP, direct-fit original oil and water feeds
PT002 K04-064Z-370 EA888 Gen II longitudinal, EA113 2.0T K04 46×56 mm, 8+0 blades 44.5×50 mm, 9 blades Journal bearing, peak 370 HP, direct-fit original oil and water feeds
PT003 EA28R-400H+ G25-550 EA888 Gen II transverse 48×60 mm 49×54 mm Bolt-on dual ceramic ball bearing, listed 15% increased response rate
PT004 EA28R-450H+ GTX2867R-50 EA888 Gen II transverse 50×67 mm 49×54 mm Bolt-on dual ceramic ball bearing, listed 15% increased response rate

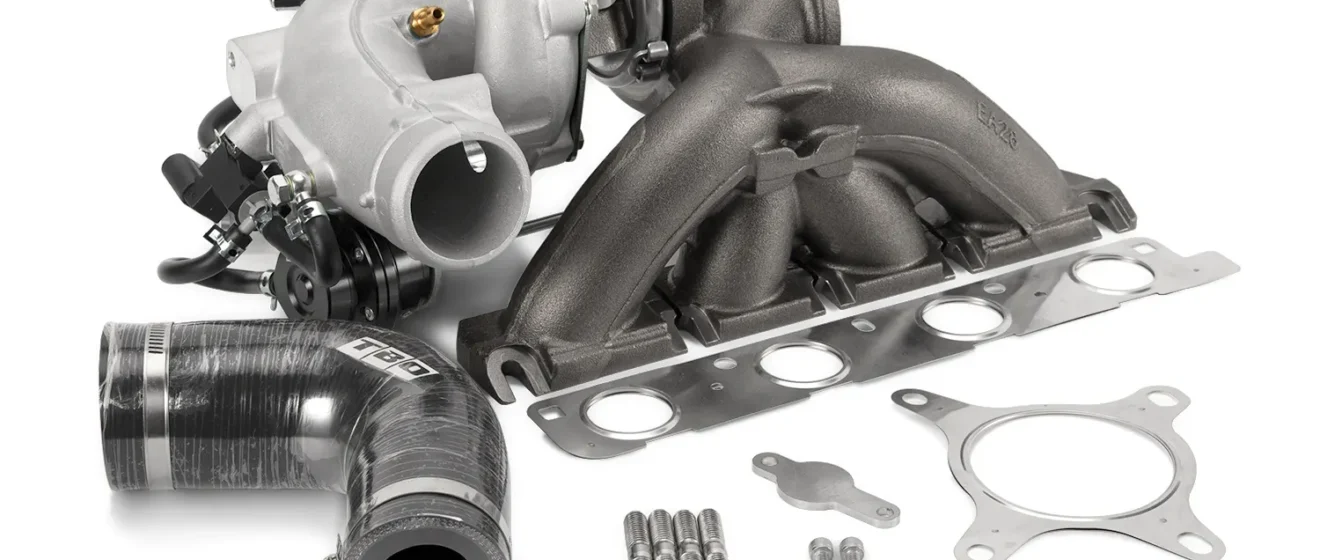

PT005 EA28R-500H+ G25-660 EA888 Gen II transverse 54×67 mm 49×54 mm Bolt-on dual ceramic ball bearing, listed 15% increased response rate
PT006 EA28R-550H+ GTX2871R-53 EA888 Gen II transverse 53×71 mm 49×54 mm Bolt-on dual ceramic ball bearing, listed 15% increased response rate
PT007 EA28R-600H G30-660 EA888 Gen II transverse 54×67 mm 55×60 mm Bolt-on ball bearing
PT008 EA28R-650H G30-770 EA888 Gen II transverse 58×71 mm 55×60 mm Bolt-on ball bearing
PT009 EA28R-750H G30-900 EA888 Gen II transverse 62×76 mm 55×60 mm Bolt-on ball bearing
PT010 EA38R-400Z G25-550 EA888 Gen III longitudinal 48×60 mm, 9 blades 49×54 mm, 9 blades Dual ceramic ball bearing, 2.0T, listed 400 HP
PT011 EA38R-400H G25-550 EA888 Gen III transverse MQB 48×60 mm, 9 blades 49×54 mm, 9 blades Ball bearing, listed 15% increased response rate, 400 HP
PT012 EA38R-450H GTX2867R EA888 Gen III transverse 50×67 mm, 9 blades 49×54 mm, 9 blades Ball bearing, listed 15% increased response rate, 450 HP
PT013 EA38R-500Z G25-660 EA888 Gen III longitudinal 54×67 mm, 9 blades 49×54 mm, 9 blades Ball bearing, listed 15% increased response rate, 500 HP
PT014 EA38R-500H G25-660 EA888 Gen III transverse 54×67 mm, 9 blades 49×54 mm, 9 blades Ball bearing, listed 15% increased response rate, 500 HP
PT015 EA38R-550H GTX2871R EA888 Gen III transverse 53×71 mm, 9 blades 49×54 mm, 9 blades Ball bearing, listed 15% increased response rate, 550 HP
PT016 EA38R-600H G30-660 EA888 Gen III transverse 54×67 mm 55×60 mm Bolt-on ball bearing
PT017 EA38R-650H G30-770 EA888 Gen III transverse 58×71 mm 55×60 mm Bolt-on ball bearing
PT018 ATS-500R G25-660 GM LTG engine 54×67 mm 49×54 mm, 9 blades Ball bearing, direct-fit OE oil and water feeds
PT019 ATS-650R G30-770 GM LTG engine 58×71 mm 55×60 mm Ball bearing, 880693-5002S / 740902-0090 reference
PT020 ATS-500R G25-660 2009–2012 2.0T engine 54×67 mm 55×60 mm Bolt-on ball bearing

Performance Turbocharger Selection Guide

For smaller engines between 1.4L and 2.0L, GT20, GT22, G25-550 and G25-660 models are commonly positioned as responsive upgrade options. For 1.8L to 3.0L applications, GT28, GT30, G30-660, G30-770 and G30-900 models provide a wider performance range. For larger displacement or higher-power builds, GT35, G35-900 and G35-1050 models are more suitable.

For vehicle-specific applications, EA888 bolt-on upgrades provide a more direct product path for Audi and Volkswagen tuning markets. GM LTG bolt-on options can serve Chevrolet, Cadillac ATS-style and related 2.0T performance applications.

Important Note About HP Ratings

The HP values listed in this catalog are reference ranges based on turbocharger configuration. Final engine output depends on many factors, including engine condition, fuel system, ECU calibration, intercooler setup, exhaust flow, boost pressure, supporting hardware and installation quality.

For B2B orders, buyers should confirm the target vehicle, engine code, installation layout and performance goal before selecting a turbocharger.

FAQ

What is the difference between a universal turbo and a bolt-on turbo?

A universal turbocharger is designed for custom installation and requires compatible manifold, downpipe, oil lines, water lines and tuning work. A bolt-on turbocharger is designed for a specific engine or vehicle platform and is generally easier to install.

Which turbo models are suitable for EA888 engines?

The catalog includes K04-064H, K04-064Z, EA28R and EA38R bolt-on upgrade turbos for EA888 Gen II and Gen III applications, including transverse and longitudinal engine layouts.

What are the main universal turbo series in the catalog?

The main universal turbo series include GTX20, GTX22, GTX25, GTX28, GTX30, GTX35, G25, G30 and G35 models.

Are there high-power turbo options above 900 HP?

Yes. The catalog includes G35-1050 and GTX3584R / GTX3582R-related options with listed ranges up to 1000–1050 HP depending on configuration.

Who should buy these performance turbochargers?

These products are suitable for performance tuning workshops, turbo rebuilders, importers, wholesalers, motorsport suppliers and B2B automotive performance parts distributors.

Conclusion

Trimpexparts’s performance upgrade turbocharger catalog offers a wide selection of universal GTX turbos, G-Series turbochargers, G(GT) hybrid-style configurations and bolt-on upgrade turbos for popular 2.0T performance platforms.

For B2B buyers, this catalog provides flexibility across different market needs: universal turbochargers for custom builds, G-Series models for modern high-flow upgrades, and bolt-on turbochargers for faster installation and application-specific performance solutions.

Whether your customers need a responsive G25-550, a high-flow G30-900, a 1000 HP capable G35-1050, or a direct-fit EA888 upgrade turbo, Trimpexparts can support wholesale, product matching and export-ready supply.

Looking for performance upgrade turbochargers for wholesale supply? Contact Trimpexparts with your target engine, turbo model, HP range or part number, and our team will help you match the right turbocharger solution.
